ESAB IOX 14 Single Stage Oxygen Regulator - High Flow Oxygen Regulators

For extra high performance, this regulator can meet service demands where high flow-oxygen is required. These regulators are suitable for heavy cutting, thermal lancing and light scarfing. Also, they are suitable for use with cylinders and pipelines.

Imported safety pressure gauges designed for 300 bar Service pressure, confirming to EN-837 standards

  • A - Inlet 124 bar
  • B - Inlet 14 bar
  • Maximum Inlet Pressure 200 bar.

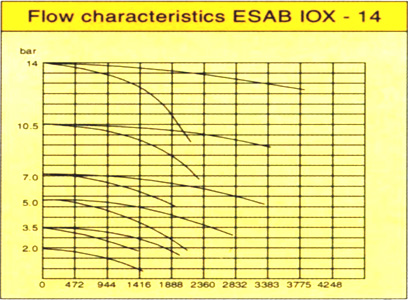

  • Maximum flow (Cylinder) 3500 LPM.
  • Maximum flow (Pipeline) 2594 LMP at 14 bar.

Technical Specifications

ESAB Single Stage Regulators : IS 6901-1988

ESAB 'B' Series single stage regulators continue the tradition of superior performance in single stage range. The latest materials and advanced component design make these regulators suitable to meet the stringent demands of use in shop-floor as well as in outdoor conditions with enhanced safety.

ESAB IOX - 13B and ESAB IDA-4B are the toughest and most reliable units for oxy fuel gas service. These are provided with two pressure gauges one to indicate outlet pressure. Also available are 'C' series single stage regulators with only one gauge to show the cylinder pressure.

The pressure-adjusting knob can set the working pressure calibrated on the bonnet. A low pressure LPG regulator suitable for Ox-LPG cutting, Air-LPG equipment and heating applications is also available. The outlet adjustable pressure is 0-1 Kg / cm2. Imported safety pressure gauges designed for 300 bar service pressure, confirming to EN-837 standards.

Gas
Regulator Type Max. Inlet
Pressure Bar		 Max Outlet
Pressure Bar 		Max.Flow
Lit/min 		Inlet Connection Outlet Connection Main Application
Acetylene ESAB IDA-4B 20 1 250 *5/8 BSP
LH
(Male) 		3/8*BSP
LH
(Male) 		All Cutting. Heating and Welding
ESAB IDA-4C 20
Oxygen ESAB IDA-4C 200 10 1000 *5/8 BSP
LH
(Male) 		3/8*BSP
LH
(Male) 		Heavy Cutting & Heating
ESAB IDA-4C 230 10 1000
LPG ESAB LPG 18C 18 1   1NT-3121.8x
1.814 LH 		EXT-3/8*
BSP, LH
